| Shell Material: | Iron Shell | Max Voltage: | 150KV |
|---|---|---|---|
| Input Power: | AC24V | Contrast Ratio: | >4:1 |
| Control Method: | Manual | Model No: | SR202 |
| Highlight: | gamma ray collimator,large beam fiber collimator |
||
Manual X-ray Beam Limiting Collimator for CR DR Machine SR202
Quick Detail:
Type: SR202
Applicable for Bed mobile x-ray machine
Maximum X-ray field coverage range: 440mm×440mm
Max Voltage: 150KV
Weight(Kg): 6.8
Technical parameters:
| Max Voltage | 150KV |
| Maximum X-ray field coverage range | 440mm×440mm (SID=100cm) |
| The average brightness of the light field | >160 lux |
| Edge contrast ratio | >4:1 |
| Power supply requirement of projection lamp | 24V/150W |
| Bright X-ray field duration for Once | 30S |
| Distance from Focal Spot of X-ray tube to the mount plane of collimator SID (mm)(optional) | 60 |
| Filtration(Inherent) 75kV | 1mmAl |
| Filtration(Additional) | The outer optional |
| Control method | Manual |
| Drive motor | -- |
| Motor Control | -- |
| Position detection | -- |
| Input power | AC24V |
| (SID)Measuring tape | Standard Configuration |
| Center laser instructions | optional |
| Dimension(mm)(W×L×H) | 185×198×145 |
| Weight(Kg) | 6.8 |

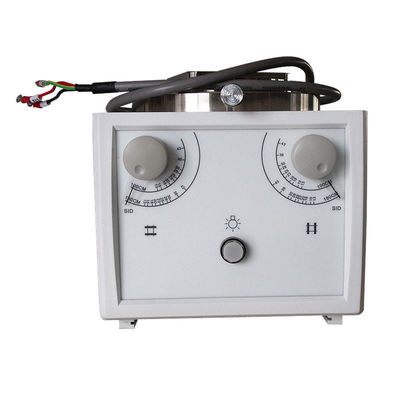

Detailed Images
