Product Details:
Payment & Shipping Terms:
|
| Model: | XD3-3.5/100 | Nominal Tube Voltage: | 100KV |
|---|---|---|---|
| Nominal Focal Spot: | 2.6 | NomMax Rating: | 3500W |
| Target Angle: | 19° | ||
| Highlight: | x ray machine tube,fluoroscopy x ray tube |
||
Digital Medical Device Stationary Anode Tube Insertion for Diagnostic X-ray System
Description:
This tube, XD3-3.5/100 is designed for general diagnostic x-ray unit and available for a nominal tube voltage with self-rectified circuit.
XD3-3.5/100 tube has two focus.
The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode.
The high anode heat storage capacity ensures a wide range of applications for general diagnostic x-ray application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support
Quick Detail:
Type: Station anode x-ray tube
Application: For general diagnostic x-ray unit
Model: XD3-3.5/100
Integrated high quality glass tube
Specifications:
Nominal Tube Voltage..........................................................................................................................................................100kV
Nominal Focal Spot....................................................................................................................................2.6 (IEC60336/1993)
Max. Anode Heat Content .................................................................................................................................................35000J
Target Angle.................................................................................................................................................................................19°
Filament Characteristics......................................................................................................................If max= 4.5A , Uf= 7±0.8
Permanent Filtration........................................................................................................Min. 1mmAl/ 50kv (IEC60522/1999)
Target Material.................................................................................................................................................................Tungsten
Max Rating............................................................................................................................................................................3500W
Competitive Advantage:
Elevated anode heat storage capacity and cooling
Constant high dose yield
Excellent lifetime

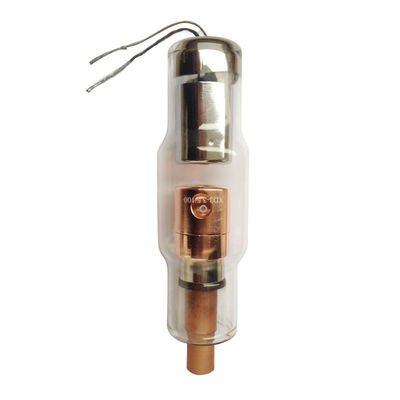

Detailed Images
For more type of our x-ray tube, please see the following chart:
| BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE | ||||||||
| Type | Equivalent | Nominal Focal Spot Value |
Max Rating (W) |
Max. Voltag (kV) |
Filament Characteristics |
Target Angle ( °) |
Anode Heat Content(KJ) |
Dimension |
|
Length ×Diameter |
||||||||
| KL1-0.8-70 | CEI OX/70-P | 0.8 | 840 | 70 | 2.2A 3.6V | 19 | 7 | 80×30 |
| KL2-0.8-70G | CEI OCX/65-G | 0.8 | 560 | 70 | 2.8A 4V | 19 | 7.5 | 80×30 |
| KL5-0.5-105 | OPX/105 | 0.5 | 950 | 105 | 3.5A 5.5V | 5 | 35 | 140×42 |
| KL10-0.6/1.8-110 | CEI 110-15 | 0.6/1.8 |
600 /5200 |
110 | 4.5A 5V/ 4.5A 6.3V |
15 | 30 | 155×50 |
| KL11-0.4-70 | Toshiba D-041 | 0.4 | 430 | 70 | 3A 3.2V | 12 | 4.3 | 67×30 |
| KL12-1.5-85 | 1.5 | 1800 | 85 | 2.5A 2.8V | 23 | 10 | 105×30 | |
| KL13-2.6-100 | 2.6 | 3500 | 100 | 4.5A 7.8V | 19 | 30 | 180×50 | |
| KL20-2.8-105 | CEI OX105-6 | 2.8 | 6000 | 105 | 5A 10V | 19 | 30 | 145×50 |
| KL22-1.8-90 | CEI OX90-2 | 1.8 | 2200 | 90 | 4.3A 6.5V | 19 | 20 | 140×42 |
| KL25-0.6/1.5-110 | CEI 110-5 | 0.6/1.5 | 600/ 3500 |
110 | 4.5A 5V/ 4.5A 6.3V |
12 | 30 | 145×50 |
| KL27-0.8-70 | CEI OX/70-M | 0.8 | 840 | 70 | 2.1A 2.8V | 19 | 7 | 72×30 |
| XD2-1.4/85 | 1.5 | 1800 | 85 | 2.6A 3.0V | 23 | 10 | 105×30 | |
| XD3- 3.5/100 |
2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 180×51 | |
| XD3A- 3.5/105X |
CEI OX105-4 | 2.6 | 3500 | 100 | 4.5A 7V | 19 | 30 | 178×51 |
| XD4- 2,9/100 |
1.8/4.2 | 2500/ 10000 |
100 | 4.5A 5V/ 4.5A 10V |
19 | 55 | 230×60 | |
| XD6-1.1,3.5/100 | 1.0/2.6 | 1100/ 3500 |
100 | 4.5A 3.7V/ 4.5A 7.8V |
19 | 30 | 180×50 | |
| XD9- 3.1/100 |
2.2 | 3100 | 100 | 4.5A 8.5V | 19 | 30 | 147×50 | |
