| Model: | SRMWTX73-0.6/1.2-150H | Nominal Tube Voltage: | 150KV |
|---|---|---|---|
| Nominal Focal Spot: | 0.6/1.2 | Exposure Rating: | 30KW/74KW(150Hz) |
| Target Angle: | 12° | Rotation Speed: | 2800/8400RPM |
| Maximum Continuous Dissipation: | 750W | Heat Storage: | 300KHU |
| High Light: | dual focus x ray tube,conventional x ray tube |
||

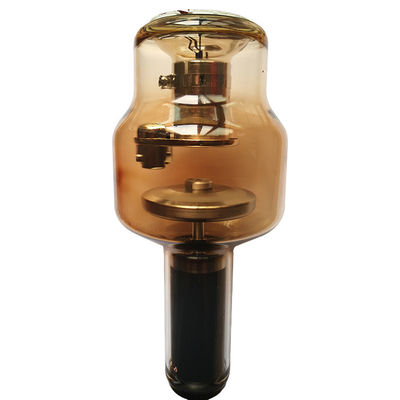

T High Speeding Rotating Anode X-ray Tube Equivalent to VARIAN RAD-14
ECHNICAL DATA
INSERT SPECIFICATIONS
Maximum Operating Voltage......................................................................................150KV
Focal Spot Size..........................................................................................................0.6/1.2
Diameter.....................................................................................................................73mm
Target Material..............................................................................................................RTM
Anode Angle....................................................................................................................12°
Rotation Speed............................................................................................2800/8400RPM
Heat Storage...........................................................................................................300KHU
Maximum Continuous Dissipation...............................................................................750W
Maximum Filament Current
Large Focus…………................................................................……………………..5.4A
Small Focus…………................................................................……………………..5.4A
Inherent Filtration................................................................1mmAl/75KV(IEC60522/1999)
Maximum Power(0.1S)
(50/60Hz)………….………..........................................................................20KW/50KW
(150/180Hz)………….………......................................................................30KW/74KW
Applications:
SRMWTX73-0.6/1.2-150H rotating anode X-Ray Tube is especially designed for Medical diagnosis x-ray unit.
OUTLINE DRAWING:
Detailed Images
For more type of our rotating anode x-ray tubes, please see the following chart:
| Type | Focal spot |
Max rating(kW) | Max voltage (kV) |
Max tube current (mA) |
Target angle() |
Target material |
Dimension (mm) |
Rotation rate (W/min) |
Max anode heat content (KHU) |
Max anode continuous heat dissipation(W) |
| MWTX64-0.3/0.6-130 | 0.3/0.6 | 5/17(50Hz) | 130 | 110/360 | 10° | RTM | 218×Φ80 | 2800 | 210 | 300 |
| MWTX64-0.6/1.3-130 | 0.6/1.3 | 11/32(50Hz) | 130 | 250/700 | 15° | RTM | 218×Φ80 | 2800 | 110 | 300 |
| MWTX64-0.8/1.8-130 | 0.8/1.8 | 12/33(50Hz) | 130 | 180/480 | 15° | RTM | 218×Φ80 | 2800 | 70 | 175 |
| MWTX64-0.6/1.3-130H | 0.6/1.3 | 20/54(150Hz) | 130 | 400/880 | 15° | RTM | 218×Φ80 | 2800/8400 | 110 | 300 |
| MWTX70-1.0/2.0-125 | 1.0/2.0 | 21/42.5(50Hz) | 125 | 340/570 | 16 | RTM | 250×Φ108 | 2800 | 140 | 475 |
| MWTX71-0.6/1.2-125 | 0.6/1.2 | 20/40(50Hz) | 125 | 350/750 | 12.5 | RTM | 250×Φ108 | 2800 | 150 | 500 |
| MWTX72-1.0/2.0-125 | 1.0/2.0 | 20/40(50Hz) | 125 | 380/800 | 16° | TM | 250×Φ108 | 2800 | 140 | 410 |
| MWTX72-1.0/2.0-150 | 1.0/2.0 | 20/40(50Hz) | 150 | 380/800 | 16° | TM | 250×Φ108 | 2800 | 140 | 410 |
| MWTX73-0.6/1.2-150 | 0.6/1.2 | 20/50(50Hz) | 150 | 400/1fff | 12° | RTM | 250×Φ108 | 2800 | 300 | 750 |
| MWTX74-0.6/1.2-150 | 0.6/1.2 | 20/46(50Hz) | 150 | 370/760 | 12 | RTM | 250×Φ108 | 2800 | 150 | 475 |
| MWTX75-0.6/1.2-150 | 0.6/1.2 | 20/50(50Hz) | 150 | 300/700 | 12 | RTM | 250×Φ108 | 2800 | 220 | 750 |
| MWTX76-0.6/1.2-150 | 0.6/1.2 | 20/50(50Hz) | 150 | 300/700 | 12 | RTM | 250×Φ108 | 2800 | 300 | 870 |
| MWTX78-0.6/1.5-125 | 0.6/1.5 | 18/47.5(50Hz) | 125 | 260/750 | 14° | RTM | 250×Φ108 | 2800 | 200 | 410 |
| MWTX90-0.6/1.2-150 | 0.6/1.2 | 19/50(50Hz) | 150 | 350/800 | 12° | RTM | 265×Φ120 | 2800 | 300 | 500 |
| MWTX90-1.0/2.0-150 | 1.0/2.0 | 30/50(50Hz) | 150 | 400/700 | 16° | RTM | 265×Φ120 | 2800 | 200 | 490 |
