| Model: | HS-03-1(3 Cores,2.2m) | Type: | One Step |
|---|---|---|---|
| Internal Structure: | Mechanical | Cover Materia: | PU |
| Wires Material: | Copper | Applications: | Electric Control Parts |
| High Light: | hand x ray machine,handheld x ray unit |
||

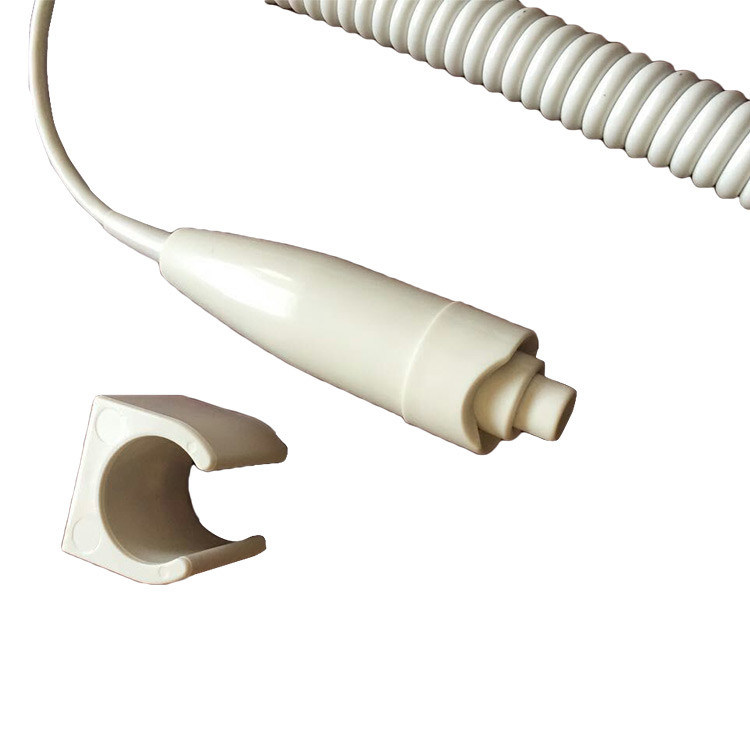

One Step X Ray Exposure switch for X-ray Machine or Medical Equipment
Applications:
X-ray exposure Hand switch is the electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure
Quick Detail:
Model: HS-03-1
Type: One step
Construction and material: With Mechanical switch, PU coil cord cover and copper wires
Mechanical life: 1.0 million times
Electrical life: 100 thousand times
Certification: CE, CQC, RoHS
Connector: can fixed to RJ11, RJ12
Competitive Advantage:
Better performance with Omron micro switch
Better elasticity of coil cord with PU cover and pure copper wire
Longer Mechanical life and Electrical life
CE, CQC, ROHS approval.
Type and Useful time:
Cores:................................................................................................two cores or three cores
Type:.................................................................................................. one step
Useful time(Mechanical life): .......................................................1.0 million times---50 million times
Useful time(Electrical life): ...........................................................100 thousand times---300 thousand times
Operation Method:
When pressing the button, it is connected while loosing it is cut. Press the button to the first stage, the first grade is connected. This is for x-ray preparation. Then do not loose your thumb, and press the button to the bottom, the second grade is connected while the first grade remains connected. This is for x-ray operation.
Transportation and Storage Conditions:
| Environment Temperature | Relative Humidity | Atmospheric Pressure |
| (-20~70)℃ | ≤93% |
(50~106) KPa |
